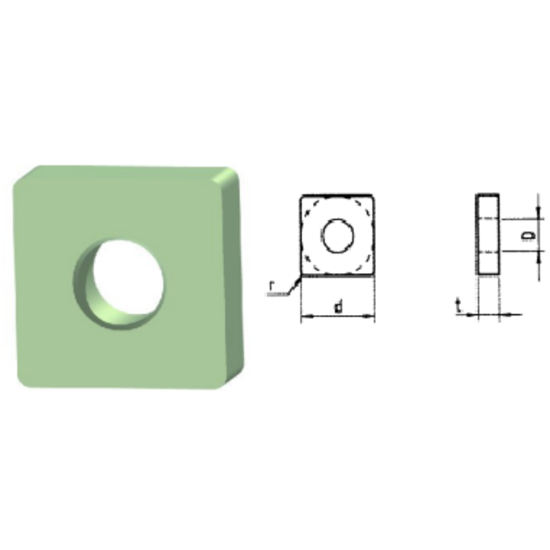

ROMAY SNMA 433 CC-516 Turning Insert Square Silicon Nitride 0.047 Corner Radius

ANSI: SNMA433 CC-516

ISO: SNMA120412 CC-516

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMSNMA120412 CC-516
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our best overall grade with very good wear resistance & excellent shock resistance. Excellent for hard materials & interrupted cuts at high speeds.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Package Size 10
Insert Type Negative
Made In USA No
Application Ext.Turning, Int.Turning
Grade CC-516
Shipping State Michigan
Insert/Tool Insert
Dimensional Specifications
Insert Size Ic 12 "43"
Cut Rating >60HRC Steel, Ductile Iron, Grey Iron
Corner Radius 0.0470 1.19MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SN
Cutting Edge Mat Silicon Nitride
