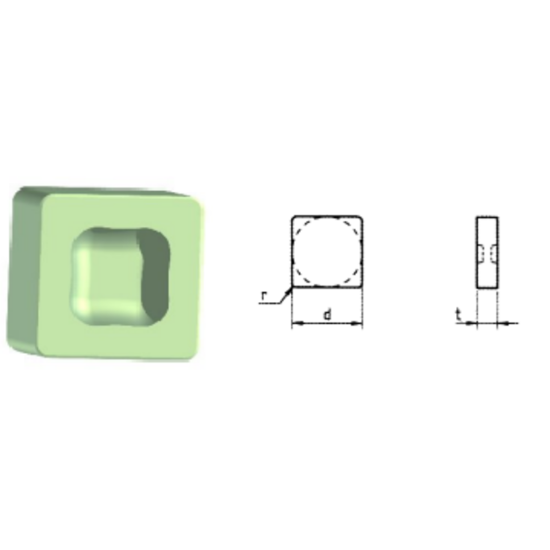

ROMAY SNGX 554 CC-510 Turning Insert Square Silicon Nitride 0.062 Corner Radius

ANSI: SNGX554 CC-510

ISO: SNGX150716 CC-510

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMSNGX150716 CC-510
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

A high speed, low cost silicon nitride grade with excellent wear resistance.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Int.Turning, Ext.Turning
Insert Application Roughing
Made In USA No
Grade CC-510
Shipping State Michigan
Package Size 10
Insert Type Negative
Dimensional Specifications
Cut Rating >60HRC Steel, Ductile Iron, Grey Iron
Corner Radius 0.0620 1.57MM
Insert Size Ic 15 "55"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SN
Cutting Edge Mat Silicon Nitride
