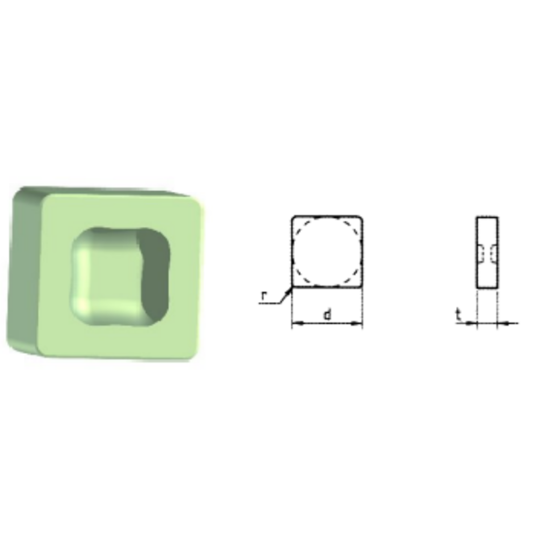

ROMAY SNGX 553 CC-516 Turning Insert Square Silicon Nitride 0.047 Corner Radius

ANSI: SNGX553 CC-516

ISO: SNGX150712 CC-516

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMSNGX150712 CC-516
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our best overall grade with very good wear resistance & excellent shock resistance. Excellent for hard materials & interrupted cuts at high speeds.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Insert Type Negative
Insert Application Roughing
Made In USA No
Application Int.Turning, Ext.Turning
Shipping State Michigan
Grade CC-516
Package Size 10
Dimensional Specifications
Insert Size Ic 15 "55"
Cut Rating >60HRC Steel, Ductile Iron, Grey Iron
Corner Radius 0.0470 1.19MM
Cutting & Machining Properties
Cutting Edge Mat Silicon Nitride
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
