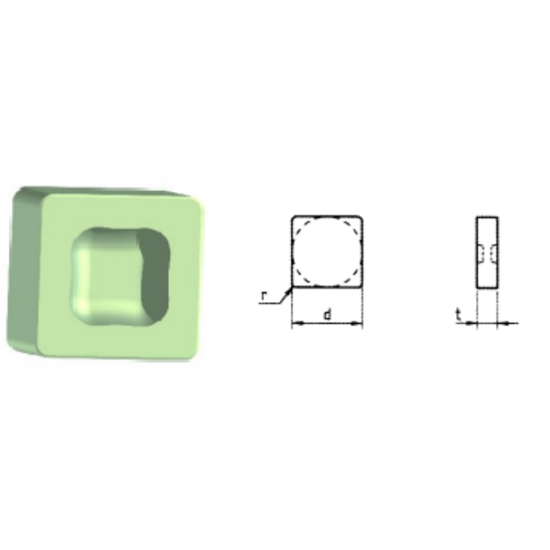

ROMAY SNGX 553 CC-513 Turning Insert Square Silicon Nitride 0.047 Corner Radius

ANSI: SNGX553 CC-513

ISO: SNGX150712 CC-513

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMSNGX150712 CC-513
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our toughest silicon nitride grade. Great for high-speed iron cutting with very heavy interruptions in milling, turning, boring facing.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing
Made In USA No
Insert/Tool Insert
Application Ext.Turning, Int.Turning
Shipping State Michigan
Package Size 10
Grade CC-513
Dimensional Specifications
Insert Size Ic 15 "55"
Cut Rating Ductile Iron, Gray Iron
Corner Radius 0.0470 1.19MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SN
Cutting Edge Mat Silicon Nitride
