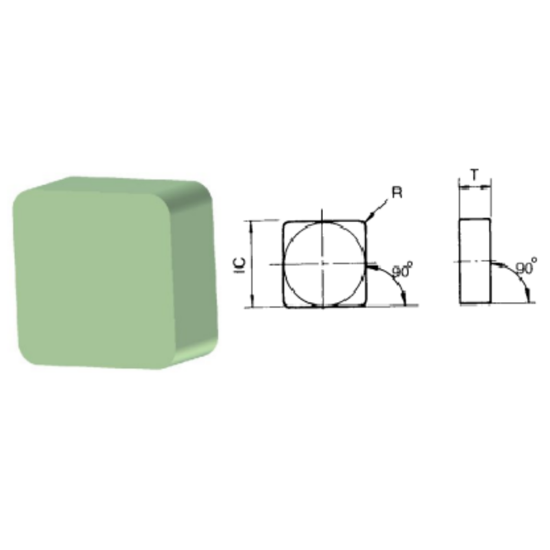

ROMAY SNGN 643 CC-5477 Turning Insert Square Silicon Nitride 0.047 Corner Radius

ANSI: SNGN643 CC-5477

ISO: SNGN190612 CC-5477

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMSNGN190612 CC-5477
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our silicon nitride grade for cutting exotic aerospace metals such as Inconel, Waspaloy, Hastelloy, Renee, etc. For roughing and finishing. A cost-effective alternative to the “whiskered” ceramic.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert/Tool Insert
Insert Application Roughing
Made In USA No
Application Int.Turning, Ext.Turning
Grade CC-5477
Shipping State Michigan
Package Size 10
Dimensional Specifications
Corner Radius 0.0470 1.19MM
Cut Rating High Temp, Gray Iron
Insert Size Ic 19 "64"
Cutting & Machining Properties
Cutting Edge Mat Silicon Nitride
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
