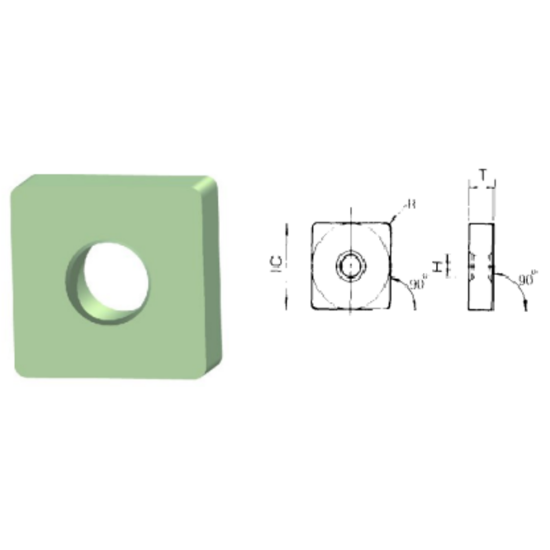

ROMAY SNGA 432 CC-515 Turning Insert Square Silicon Nitride 0.031 Corner Radius

ANSI: SNGA432 CC-515

ISO: SNGA120408 CC-515

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMSNGA120408 CC-515
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our silicon nitride grade for all irons, especially ductile and nodular irons. An extremely hard, wear-resistant silicon nitride for roughing and finishing at elevated speeds. Works in continuous and interrupted cuts.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Application Int.Turning, Ext.Turning
Insert/Tool Insert
Grade CC-515
Shipping State Michigan
Package Size 10
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Cut Rating >60HRC Steel, Ductile Iron, Grey Iron
Insert Size Ic 12 "43"
Cutting & Machining Properties
Cutting Edge Mat Silicon Nitride
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
