ROMAY RNGN 33 CC-516 Turning Insert Round Silicon Nitride 0.375 Corner Radius

ANSI: RNGN33 CC-516

ISO: RNGN090400 CC-516

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMRNGN090400 CC-516
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our best overall grade with very good wear resistance & excellent shock resistance. Excellent for hard materials & interrupted cuts at high speeds.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Finishing, Semi Finishing
Application Ext.Turning, Int.Turning
Grade CC-516
Shipping State Michigan
Package Size 10
Made In USA No
Insert/Tool Insert
Dimensional Specifications
Insert Size Ic 09 "33"
Cut Rating >60HRC Steel, Ductile Iron, Grey Iron
Corner Radius 0.3750 9.53MM
Cutting & Machining Properties
Cutting Edge Mat Silicon Nitride

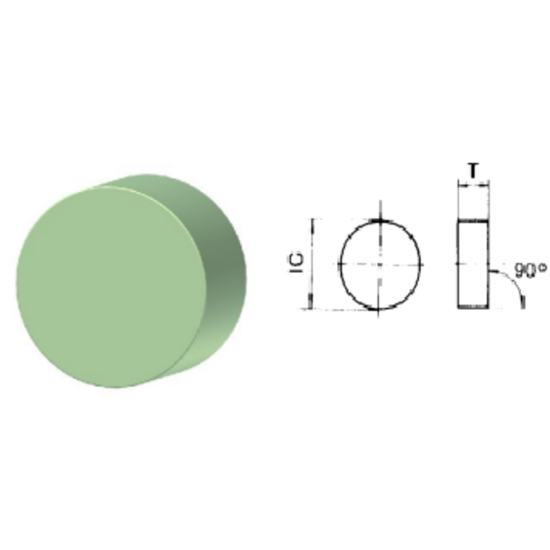

Insert Style RN
Insert Shape/Cutter Pocket Shape Round
