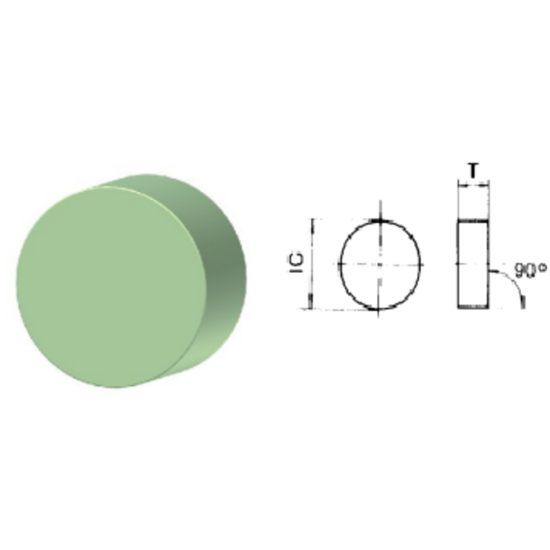

ROMAY RNGN 33 CC-514 Turning Insert Round Silicon Nitride 0.375 Corner Radius

ANSI: RNGN33 CC-514

ISO: RNGN090400 CC-514

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMRNGN090400 CC-514
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our medium silicon nitride grade. Great for general purpose machining of irons.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Ext.Turning, Int.Turning
Package Size 10
Insert Type Negative
Made In USA No
Grade CC-514
Insert Application Semi Finishing, Finishing
Shipping State Michigan
Dimensional Specifications
Cut Rating Ductile Iron, Gray Iron
Corner Radius 0.3750 9.53MM
Insert Size Ic 09 "33"
Cutting & Machining Properties
Insert Style RN
Cutting Edge Mat Silicon Nitride
Insert Shape/Cutter Pocket Shape Round
