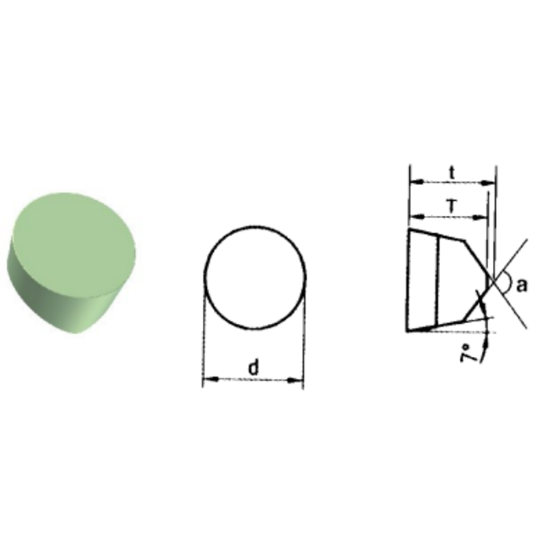

ROMAY RCGX 105 CC-5477 Turning Insert Round Silicon Nitride 0.625 Corner Radius

ANSI: RCGX105 CC-5477

ISO: RCGX151000 CC-5477

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMRCGX151000 CC-5477
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our silicon nitride grade for cutting exotic aerospace metals such as Inconel, Waspaloy, Hastelloy, Renee, etc. For roughing and finishing. A cost-effective alternative to the “whiskered” ceramic.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application Finishing, Semi Finishing
Insert Type Positive
Application Ext.Turning, Int.Turning
Shipping State Michigan
Insert/Tool Insert
Grade CC-5477
Package Size 10
Dimensional Specifications
Cut Rating High Temp, Gray Iron
Insert Size Ic 105
Corner Radius 0.6250 15.88MM
Cutting & Machining Properties
Insert Style RC
Cutting Edge Mat Silicon Nitride
Insert Shape/Cutter Pocket Shape Round
