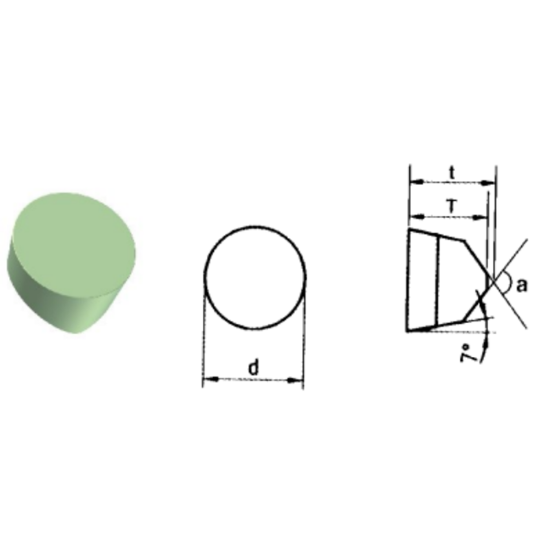

ROMAY RCGX 103 CC-5477 Turning Insert Round Silicon Nitride 0.375 Corner Radius

ANSI: RCGX103 CC-5477

ISO: RCGX090700 CC-5477

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMRCGX090700 CC-5477
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our silicon nitride grade for cutting exotic aerospace metals such as Inconel, Waspaloy, Hastelloy, Renee, etc. For roughing and finishing. A cost-effective alternative to the “whiskered” ceramic.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing
Made In USA No
Insert/Tool Insert
Grade CC-5477
Application Ext.Turning, Int.Turning
Package Size 10
Insert Type Positive
Shipping State Michigan
Dimensional Specifications
Corner Radius 0.3750 9.53MM
Insert Size Ic 103
Cut Rating High Temp, Gray Iron
Cutting & Machining Properties
Cutting Edge Mat Silicon Nitride
Insert Shape/Cutter Pocket Shape Round
Insert Style RC
