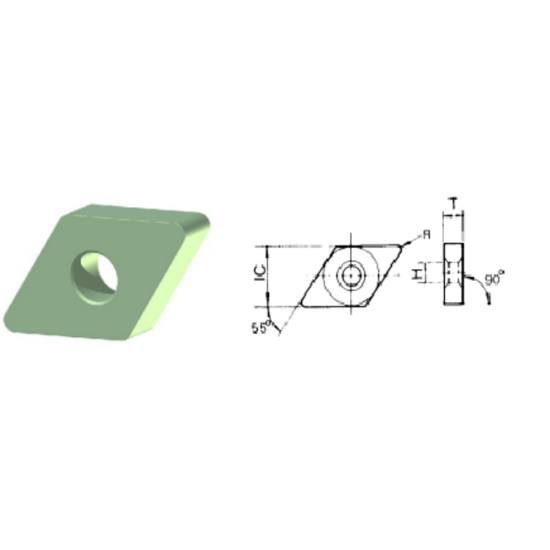

Picture of ROMAY DNGA 543 CC-510 Turning Insert 55.0° Silicon Nitride 0.047 Corner Radius

ROMAY DNGA 543 CC-510 Turning Insert 55.0° Silicon Nitride 0.047 Corner Radius

ANSI: DNGA543 CC-510

ISO: DNGA190612 CC-510

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMDNGA190612 CC-510
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

A high speed, low cost silicon nitride grade with excellent wear resistance.

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Turning, Ext.Turning
Insert Type Negative
Insert Application Roughing
Made In USA No
Shipping State Michigan
Package Size 10
Grade CC-510
Insert/Tool Insert
Dimensional Specifications
Cut Rating >60HRC Steel, Ductile Iron, Grey Iron
Corner Radius 0.0470 1.19MM
Insert Size Ic 19 "54"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Cutting Edge Mat Silicon Nitride
Insert Style DN
