ROMAY DNGA 542 CC-510 Turning Insert 55.0° Silicon Nitride 0.031 Corner Radius

ANSI: DNGA542 CC-510

ISO: DNGA190608 CC-510

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMDNGA190608 CC-510
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

A high speed, low cost silicon nitride grade with excellent wear resistance.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Ext.Turning, Int.Turning
Shipping State Michigan
Package Size 10
Insert/Tool Insert
Insert Type Negative
Made In USA No
Grade CC-510

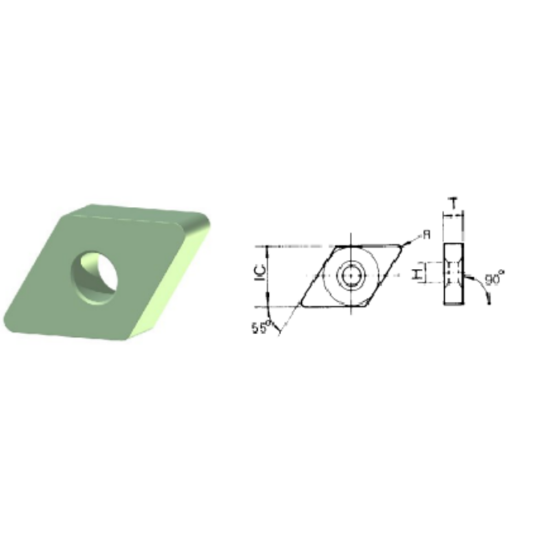

Dimensional Specifications
Corner Radius 0.0310 0.79MM
Insert Size Ic 19 "54"
Cut Rating >60HRC Steel, Ductile Iron, Grey Iron
Cutting & Machining Properties
Cutting Edge Mat Silicon Nitride
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
