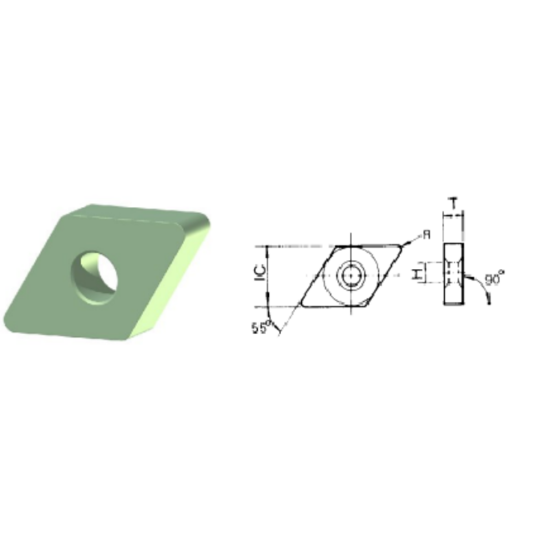

ROMAY DNGA 434 CC-5477 Turning Insert 55.0° Silicon Nitride 0.062 Corner Radius

ANSI: DNGA434 CC-5477

ISO: DNGA150416 CC-5477

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMDNGA150416 CC-5477
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our silicon nitride grade for cutting exotic aerospace metals such as Inconel, Waspaloy, Hastelloy, Renee, etc. For roughing and finishing. A cost-effective alternative to the “whiskered” ceramic.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Application Ext.Turning, Int.Turning
Shipping State Michigan
Insert Application Roughing
Package Size 10
Insert/Tool Insert
Grade CC-5477
Dimensional Specifications
Insert Size Ic 15 "43"
Corner Radius 0.0620 1.57MM
Cut Rating High Temp, Gray Iron
Cutting & Machining Properties
Cutting Edge Mat Silicon Nitride
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
