ROMAY DNGA 432 CC-514 Turning Insert 55.0° Silicon Nitride 0.031 Corner Radius

ANSI: DNGA432 CC-514

ISO: DNGA150408 CC-514

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMDNGA150408 CC-514
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our medium silicon nitride grade. Great for general purpose machining of irons.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 10
Grade CC-514
Insert/Tool Insert
Application Int.Turning, Ext.Turning
Insert Type Negative
Made In USA No
Shipping State Michigan
Dimensional Specifications
Insert Size Ic 15 "43"
Cut Rating Ductile Iron, Gray Iron
Corner Radius 0.0310 0.79MM
Cutting & Machining Properties

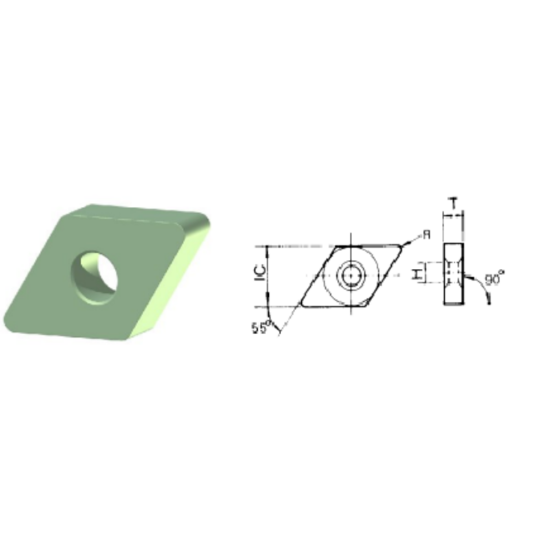

Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Cutting Edge Mat Silicon Nitride
