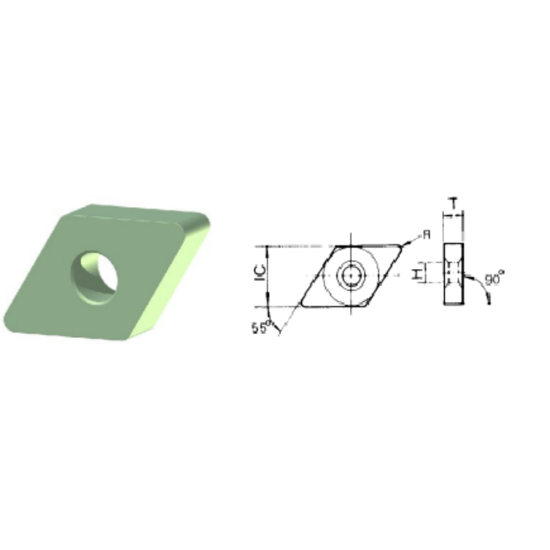

ROMAY DNGA 432 CC-513 Turning Insert 55.0° Silicon Nitride 0.031 Corner Radius

ANSI: DNGA432 CC-513

ISO: DNGA150408 CC-513

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMDNGA150408 CC-513
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our toughest silicon nitride grade. Great for high-speed iron cutting with very heavy interruptions in milling, turning, boring facing.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Insert/Tool Insert
Application Ext.Turning, Int.Turning
Shipping State Michigan
Package Size 10
Grade CC-513
Dimensional Specifications
Cut Rating Ductile Iron, Gray Iron
Insert Size Ic 15 "43"
Corner Radius 0.0310 0.79MM
Cutting & Machining Properties
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Cutting Edge Mat Silicon Nitride
