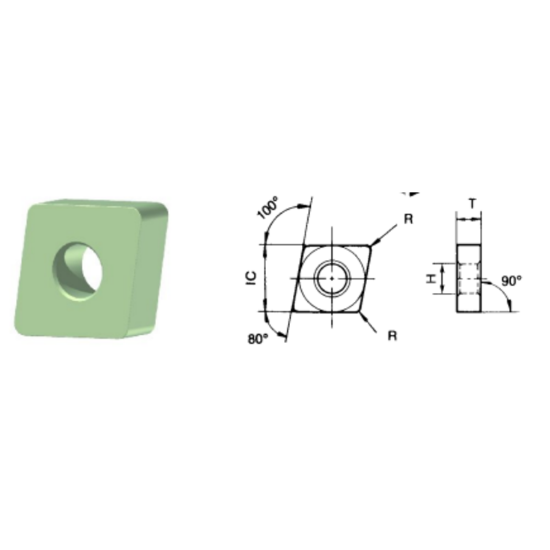

ROMAY CNMA 544 CC-516 Turning Insert 80.0° Silicon Nitride 0.062 Corner Radius

ANSI: CNMA544 CC-516

ISO: CNMA160616 CC-516

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMCNMA160616 CC-516
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our best overall grade with very good wear resistance & excellent shock resistance. Excellent for hard materials & interrupted cuts at high speeds.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Int.Turning, Ext.Turning
Shipping State Michigan
Insert Type Negative
Made In USA No
Insert Application Roughing
Grade CC-516
Package Size 10
Dimensional Specifications
Cut Rating >60HRC Steel, Ductile Iron, Grey Iron
Insert Size Ic 16 "54"
Corner Radius 0.0620 1.57MM
Cutting & Machining Properties
Insert Style CN
Cutting Edge Mat Silicon Nitride
Insert Shape/Cutter Pocket Shape 80.0°
