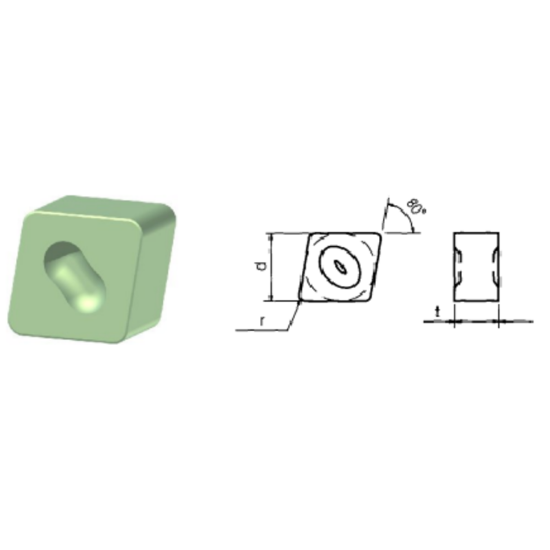

ROMAY CNGX 554 CC-515 Turning Insert 80.0° Silicon Nitride 0.062 Corner Radius

ANSI: CNGX554 CC-515

ISO: CNGX160716 CC-515

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMCNGX160716 CC-515
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our silicon nitride grade for all irons, especially ductile and nodular irons. An extremely hard, wear-resistant silicon nitride for roughing and finishing at elevated speeds. Works in continuous and interrupted cuts.

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning, Int.Turning
Package Size 10
Grade CC-515
Insert/Tool Insert
Shipping State Michigan
Insert Type Negative
Insert Application Roughing
Made In USA No
Dimensional Specifications
Insert Size Ic 16 "55"
Cut Rating >60HRC Steel, Ductile Iron, Grey Iron
Corner Radius 0.0620 1.57MM
Cutting & Machining Properties
Insert Style CN
Cutting Edge Mat Silicon Nitride
Insert Shape/Cutter Pocket Shape 80.0°
