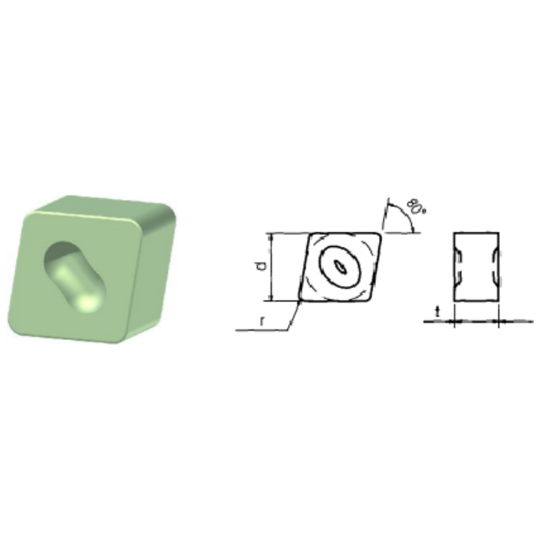

ROMAY CNGX 452 CC-514 Turning Insert 80.0° Silicon Nitride 0.031 Corner Radius

ANSI: CNGX452 CC-514

ISO: CNGX120708 CC-514

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMCNGX120708 CC-514
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our medium silicon nitride grade. Great for general purpose machining of irons.

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning, Int.Turning
Shipping State Michigan
Package Size 10
Insert/Tool Insert
Grade CC-514
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Dimensional Specifications
Insert Size Ic 12 "45"
Cut Rating Ductile Iron, Gray Iron
Corner Radius 0.0310 0.79MM
Cutting & Machining Properties
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
Cutting Edge Mat Silicon Nitride
