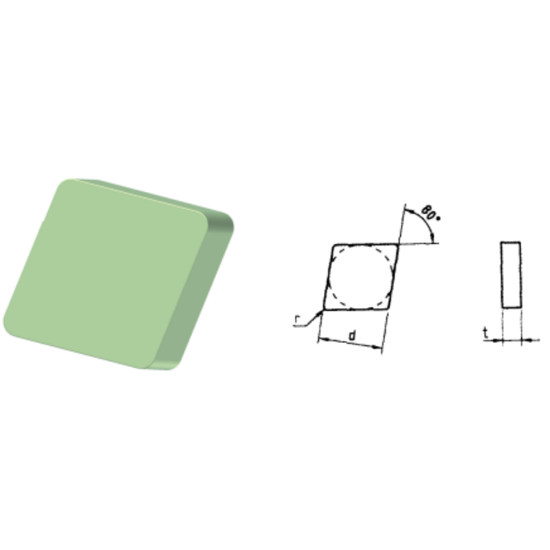

ROMAY CNGN 454 CC-513 Turning Insert 80.0° Silicon Nitride 0.062 Corner Radius

ANSI: CNGN454 CC-513

ISO: CNGN120716 CC-513

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMCNGN120716 CC-513
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our toughest silicon nitride grade. Great for high-speed iron cutting with very heavy interruptions in milling, turning, boring facing.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Grade CC-513
Made In USA No
Application Ext.Turning, Int.Turning
Shipping State Michigan
Insert Application Roughing
Package Size 10
Insert/Tool Insert
Dimensional Specifications
Insert Size Ic 12 "45"
Cut Rating Ductile Iron, Gray Iron
Corner Radius 0.0620 1.57MM
Cutting & Machining Properties
Insert Style CN
Cutting Edge Mat Silicon Nitride
Insert Shape/Cutter Pocket Shape 80.0°
