ROMAY CNGA 642 CC-5477 Turning Insert 80.0° Silicon Nitride 0.031 Corner Radius

ANSI: CNGA642 CC-5477

ISO: CNGA190608 CC-5477

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMCNGA190608 CC-5477
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our silicon nitride grade for cutting exotic aerospace metals such as Inconel, Waspaloy, Hastelloy, Renee, etc. For roughing and finishing. A cost-effective alternative to the “whiskered” ceramic.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Application Int.Turning, Ext.Turning
Insert/Tool Insert
Grade CC-5477
Shipping State Michigan
Package Size 10

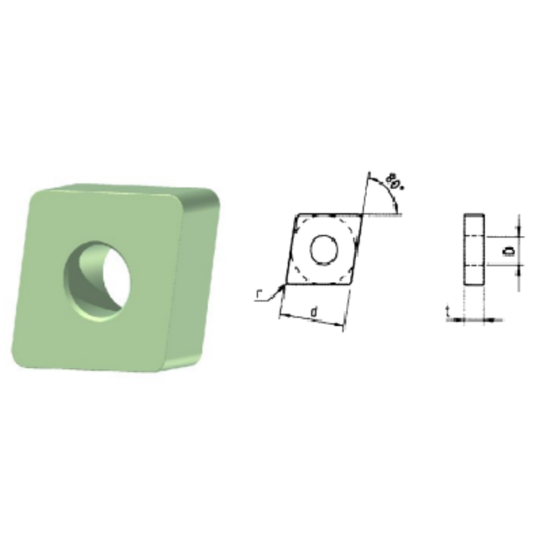

Dimensional Specifications
Insert Size Ic 19 "64"
Corner Radius 0.0310 0.79MM
Cut Rating High Temp, Gray Iron
Cutting & Machining Properties
Cutting Edge Mat Silicon Nitride
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
