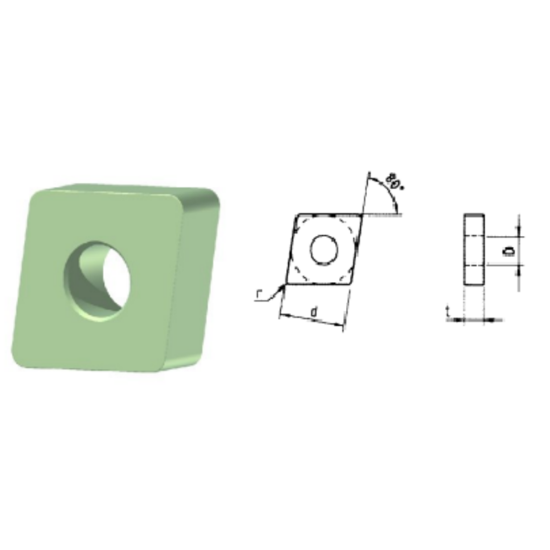

ROMAY CNGA 542 CC-514 Turning Insert 80.0° Silicon Nitride 0.031 Corner Radius

ANSI: CNGA542 CC-514

ISO: CNGA160608 CC-514

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMCNGA160608 CC-514
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our medium silicon nitride grade. Great for general purpose machining of irons.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Application Ext.Turning, Int.Turning
Shipping State Michigan
Package Size 10
Insert Application Semi Finishing, Roughing
Insert/Tool Insert
Grade CC-514
Dimensional Specifications
Cut Rating Ductile Iron, Gray Iron
Corner Radius 0.0310 0.79MM
Insert Size Ic 16 "54"
Cutting & Machining Properties
Cutting Edge Mat Silicon Nitride
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
