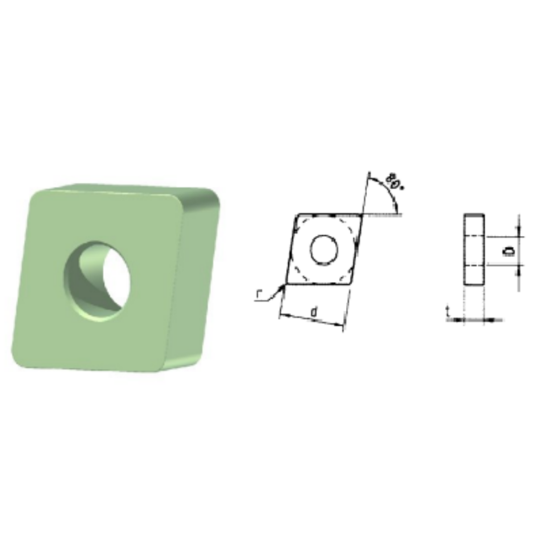

ROMAY CNGA 542 CC-510 Turning Insert 80.0° Silicon Nitride 0.031 Corner Radius

ANSI: CNGA542 CC-510

ISO: CNGA160608 CC-510

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMCNGA160608 CC-510
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

A high speed, low cost silicon nitride grade with excellent wear resistance.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Grade CC-510
Application Ext.Turning, Int.Turning
Package Size 10
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Shipping State Michigan
Dimensional Specifications
Insert Size Ic 16 "54"
Corner Radius 0.0310 0.79MM
Cut Rating >60HRC Steel, Ductile Iron, Grey Iron
Cutting & Machining Properties
Cutting Edge Mat Silicon Nitride
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
