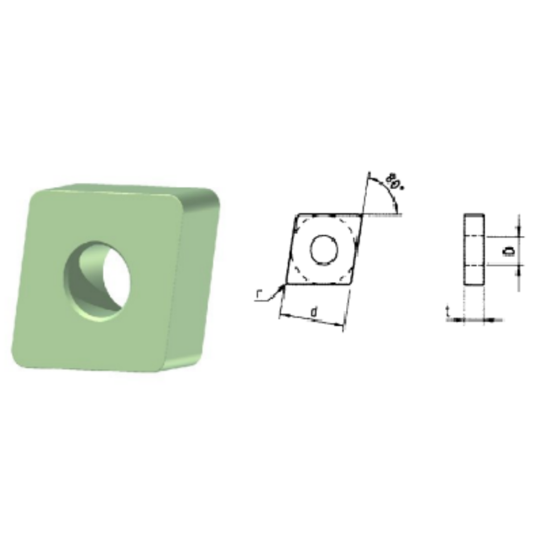

ROMAY CNGA 434 CC-510 Turning Insert 80.0° Silicon Nitride 0.062 Corner Radius

ANSI: CNGA434 CC-510

ISO: CNGA120416 CC-510

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMCNGA120416 CC-510
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

A high speed, low cost silicon nitride grade with excellent wear resistance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning, Int.Turning
Shipping State Michigan
Insert Application Roughing
Package Size 10
Grade CC-510
Insert Type Negative
Made In USA No
Insert/Tool Insert
Dimensional Specifications
Corner Radius 0.0620 1.57MM
Cut Rating >60HRC Steel
Insert Size Ic 12 "43"
Cutting & Machining Properties
Insert Style CN
Cutting Edge Mat Silicon Nitride
Insert Shape/Cutter Pocket Shape 80.0°
