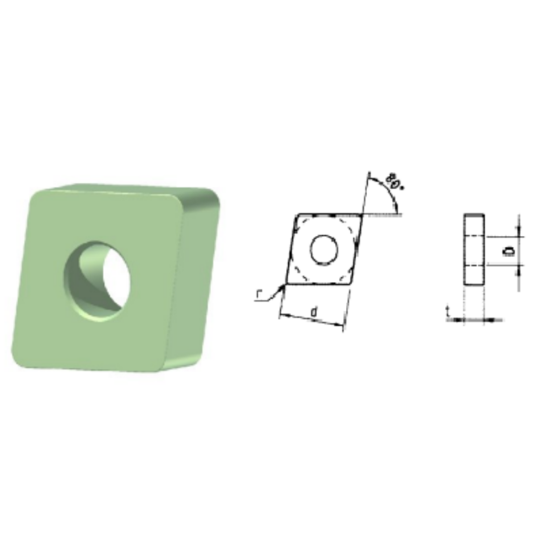

ROMAY CNGA 432 CC-5477 Turning Insert 80.0° Silicon Nitride 0.031 Corner Radius

ANSI: CNGA432 CC-5477

ISO: CNGA120408 CC-5477

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROMAY
SKU: ROMCNGA120408 CC-5477
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Silicon nitrides (Si3N4) feature an excellent combination of material properties. They are nearly as light as silicon carbide (SiC), but their microstructure gives them excellent thermal shock resistance and their high fracture toughness makes them resistant to impacts and shocks. Used at high speeds up to 4,000 sfm in cast iron machining.

Grade and Coating Description

Our silicon nitride grade for cutting exotic aerospace metals such as Inconel, Waspaloy, Hastelloy, Renee, etc. For roughing and finishing. A cost-effective alternative to the “whiskered” ceramic.

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Turning, Ext.Turning
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Michigan
Package Size 10
Insert/Tool Insert
Grade CC-5477
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Cut Rating High Temp, Gray Iron
Insert Size Ic 12 "43"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CN
Cutting Edge Mat Silicon Nitride
