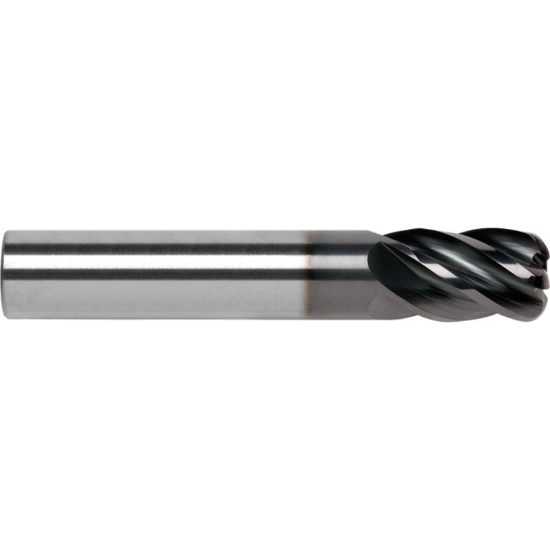

ROBBJACK XG-502-32-FL DIA 1 SH 1.00 LOC 2.00 OAL 5.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0280 0.71MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBXG-502-32-FL
Delivery date: 3-5 days
$314.10

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State California
Application Face Milling, Profile Milling, Slot Milling, Copy Milling, Side Milling
Package Size 1
Performance Rating High Performance
Made In USA Yes
Dimensional Specifications
Corner Radius 0.0280 0.71MM
Cutter Dia 1.0000 25.40MM
Length Type Standard
Single/Double End Single End
Shank/Pilot Dia 1.0000 25.40MM
Cutter Style Carbide Bull Nose Finisher
End Of Tool Shape Corner Radius
Helix Angle Variable
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Size 1.0000 25.40MM
Length Of Cut 2.0000 50.80MM
Inch/Metric Inch
Dimension Description 1.000 x 1.000 x 2.000 x 5.000
Machine Side Connection Type Weldon
Overall Len 5.0000 127.00MM
Flutes/Inserts 5
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
