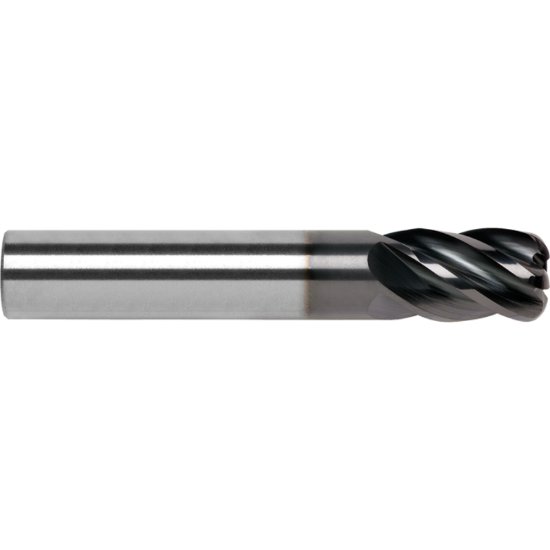

Picture of RobbJack XG-502-16 Dia 1/2 SH 0.50 LOC 1.00 OAL3.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius0.0250 0.64mm

RobbJack XG-502-16 Dia 1/2 SH 0.50 LOC 1.00 OAL3.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius0.0250 0.64mm

Part Number: ROBXG-502-16 0.500 x 0.500 x 1.000 x 3.000
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1269863
Vendor: Sussex Tool and Supply
$104.25

Description

ROBBJACK Variable Helix End Mill Carbide Uncoated Corner Radius 0.0250 0.64MM Standard Flute Flutes 5 Single End ROBBJACK Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 5
Tool Dia 0.5000 12.70MM - 1/2
Length Of Cut 1.0000 25.40MM
Geometry & Angles
Corner Radius 0.0250 0.64MM
Helix Angle Variable
Performance & Capacity
Cut Rating Gray Iron, Stainless Steel, <40HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
