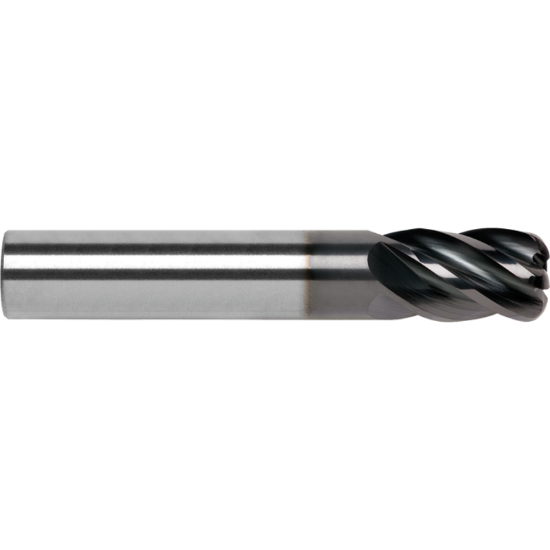

ROBBJACK XG-500-32-FL DIA 1 SH 1.00 LOC 1.1250 OAL 5.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0280 0.71MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBXG-500-32-FL
Delivery date: 3-5 days
$276.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State California
Application Profile Milling, Slot Milling, Side Milling, Face Milling, Copy Milling
Performance Rating High Performance
Made In USA Yes
Package Size 1
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Length Of Cut 1.1250 28.58MM
Length Type Standard
Dimension Description 1.000 x 1.000 x 1.125 x 5.000
Flutes/Inserts 5
Cutter Style Carbide Bull Nose Finisher
End Of Tool Shape Corner Radius
Helix Angle Variable
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 5.0000 127.00MM
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Weldon
Inch/Metric Inch
Corner Radius 0.0280 0.71MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
