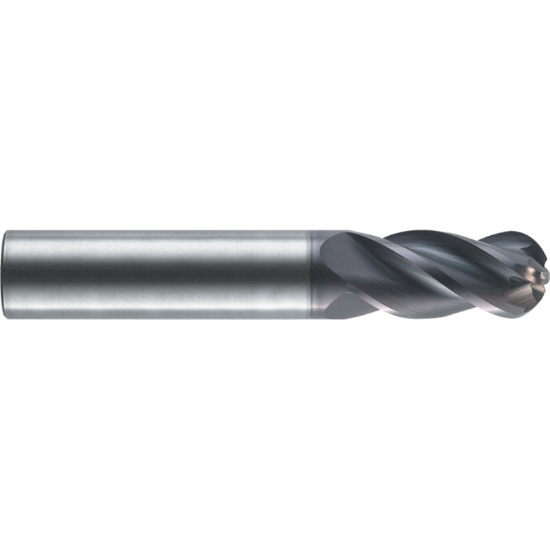

ROBBJACK XG-402-16-BN DIA 1/2 SH 0.50 LOC 1.00 OAL 3.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBXG-402-16-BN
Delivery date: 3-5 days
$115.65

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Ball Milling, Side Milling, Copy Milling, Ball Slot Milling
Package Size 1
Shipping State California
Made In USA Yes
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Overall Len 3.0000 76.20MM
Dimension Description 0.500 x 0.500 x 1.000 x 3.000
End Of Tool Shape Ball Nose
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 1.0000 25.40MM
Inch/Metric Inch
Helix Angle Variable
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
