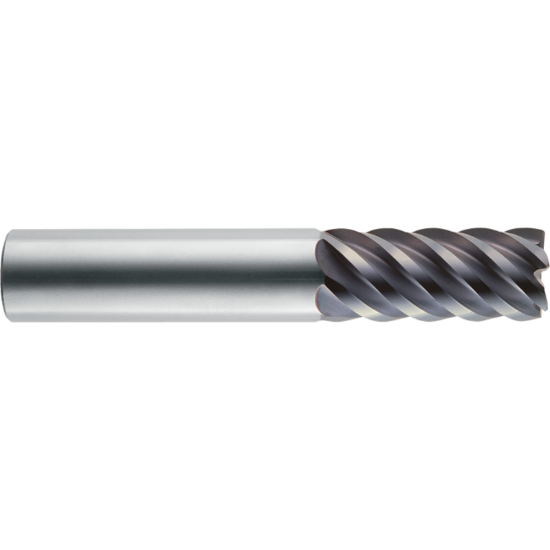

ROBBJACK XF-602-20-090-FL DIA 5/8 SH 0.6250 LOC 1.2500 OAL 3.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0900 2.29MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBXF-602-20-090-FL
Delivery date: 3-5 days
$212.35

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Copy Milling, Profile Milling, Slot Milling
Made In USA Yes
Performance Rating High Performance
Package Size 1
Shipping State California
Dimensional Specifications
Cutter Dia 0.6250 15.88MM - 5/8
Corner Radius 0.0900 2.29MM
Overall Len 3.5000 88.90MM
Cutter Style Carbide Bull Nose Finisher
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Dimension Description 0.625 x 0.625 x 1.250 x 3.500
Tool Material Carbide
Machine Side Connection Type Weldon
Flutes/Inserts 6
Inch/Metric Inch
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Helix Angle 45°
Cut Rating <53HRC Steel, High Temp, Stainless Steel
Length Type Standard
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Corner Radius
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
