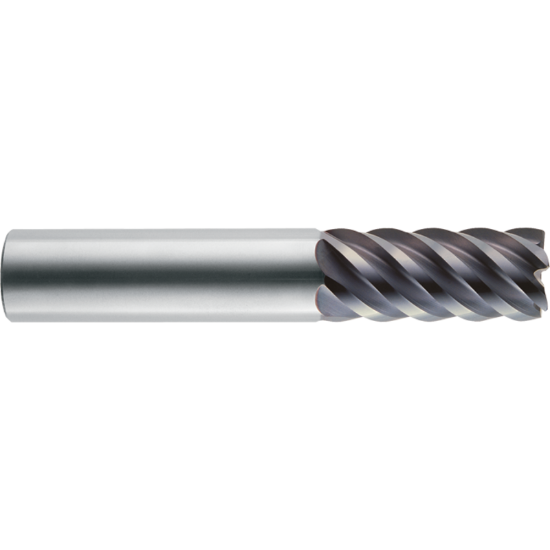

ROBBJACK XF-602-16-120-FL DIA 1/2 SH 0.50 LOC 1.00 OAL 3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.1200 3.05MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBXF-602-16-120-FL
Delivery date: 3-5 days
$124.05

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State California
Application Side Milling, Face Milling, Profile Milling, Slot Milling, Copy Milling
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Dimension Description 0.500 x 0.500 x 1.000 x 3.000
Cutter Style Carbide Bull Nose Finisher
Machine Side Connection Type Weldon
Flutes/Inserts 6
Length Of Cut 1.0000 25.40MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Overall Len 3.0000 76.20MM
Cut Rating <53HRC Steel, High Temp, Stainless Steel
Corner Radius 0.1200 3.05MM
Cutter Dia 0.5000 12.70MM - 1/2
Helix Angle 45°
Machine Side Connection Size 0.5000 12.70MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Tool Material Carbide
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
