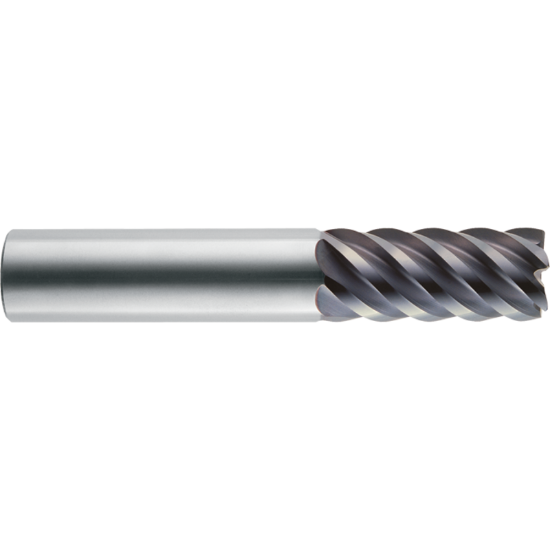

ROBBJACK XF-602-16-120 DIA 1/2 SH 0.50 LOC 1.00 OAL 3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.1200 3.05MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBXF-602-16-120
Delivery date: 3-5 days
$124.05

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Profile Milling, Slot Milling, Copy Milling
Made In USA Yes
Package Size 1
Shipping State California
Performance Rating High Performance
Dimensional Specifications
Overall Len 3.0000 76.20MM
Flutes/Inserts 6
Length Of Cut 1.0000 25.40MM
Dimension Description 0.500 x 0.500 x 1.000 x 3.000
Cutter Style Carbide Bull Nose Finisher
Machine Side Connection Size 0.5000 12.70MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Helix Angle 45°
Cut Rating <53HRC Steel, High Temp, Stainless Steel
Corner Radius 0.1200 3.05MM
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
