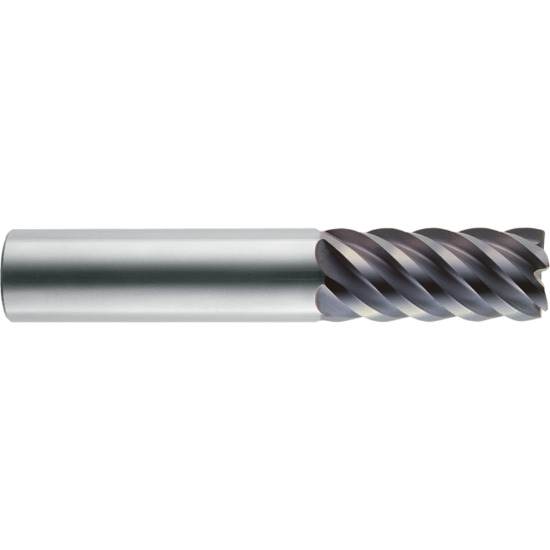

ROBBJACK XF-602-16-090-FL DIA 1/2 SH 0.50 LOC 1.00 OAL 3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0900 2.29MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBXF-602-16-090-FL
Delivery date: 3-5 days
$124.05

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Profile Milling, Side Milling, Slot Milling, Copy Milling
Package Size 1
Made In USA Yes
Shipping State California
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Machine Side Connection Type Weldon
Overall Len 3.0000 76.20MM
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
End Of Tool Shape Corner Radius
Tool Material Carbide
Flutes/Inserts 6
Length Of Cut 1.0000 25.40MM
Inch/Metric Inch
Dimension Description 0.500 x 0.500 x 1.000 x 3.000
Helix Angle 45°
Corner Radius 0.0900 2.29MM
Cutter Style Carbide Bull Nose Finisher
Cut Rating <53HRC Steel, High Temp, Stainless Steel
Length Type Standard
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
