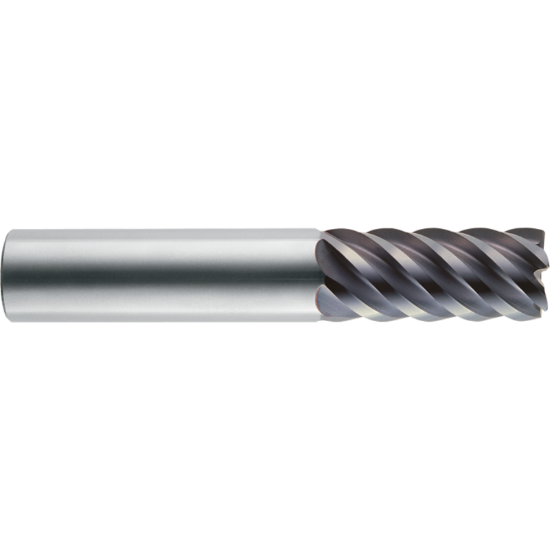

ROBBJACK XF-602-12-090 DIA 3/8 SH 0.3750 LOC 0.8750 OAL 2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0900 2.29MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBXF-602-12-090
Delivery date: 3-5 days
$88.25

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Profile Milling, Copy Milling, Side Milling, Slot Milling
Made In USA Yes
Shipping State California
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Overall Len 2.5000 63.50MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Dimension Description 0.375 x 0.375 x 0.875 x 2.500
Flutes/Inserts 6
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Cutter Dia 0.3750 9.53MM - 3/8
Helix Angle 45°
Cut Rating <53HRC Steel, High Temp, Stainless Steel
Length Of Cut 0.8750 22.23MM
Corner Radius 0.0900 2.29MM
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
