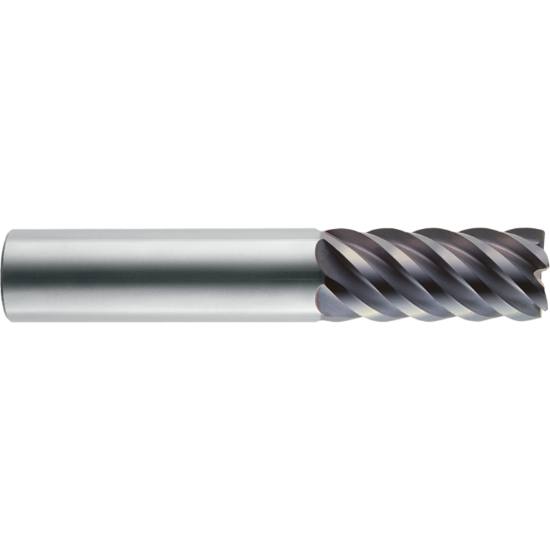

ROBBJACK XF-602-12-060 DIA 3/8 SH 0.3750 LOC 0.8750 OAL 2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0600 1.52MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBXF-602-12-060
Delivery date: 3-5 days
$88.25

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Copy Milling, Profile Milling, Slot Milling, Face Milling
Made In USA Yes
Shipping State California
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.375 x 0.375 x 0.875 x 2.500
Corner Radius 0.0600 1.52MM
Machine Side Connection Size 0.3750 9.53MM
Helix Angle 45°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flutes/Inserts 6
Inch/Metric Inch
Overall Len 2.5000 63.50MM
End Of Tool Shape Corner Radius
Cut Rating <53HRC Steel, High Temp, Stainless Steel
Length Type Standard
Length Of Cut 0.8750 22.23MM
Single/Double End Single End
Cutter Dia 0.3750 9.53MM - 3/8
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
