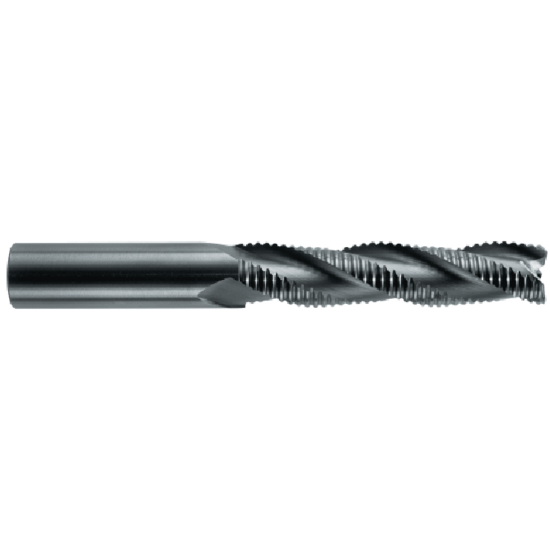

ROBBJACK WRU-303-20 DIA 5/8 SH 0.6250 LOC 2.50 OAL 4.6250 End Mill Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBWRU-303-20
Delivery date: 3-5 days
$192.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Performance Rating High Performance
Application Face Milling, Shoulder Milling, Counterboring, Slot Milling
Package Size 1
Shipping State California
Dimensional Specifications
Cutter Dia 0.6250 15.88MM - 5/8
Cut Rating Aluminum, Graphite, Plastic
Length Of Cut 2.5000 63.50MM
End Of Tool Shape Square
Cutter Style Carbide Rougher
Dimension Description 0.625 x 0.625 x 2.500 x 4.625
Overall Len 4.6250 117.48MM
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Length Type Standard
Machine Side Connection Size 0.6250 15.88MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
