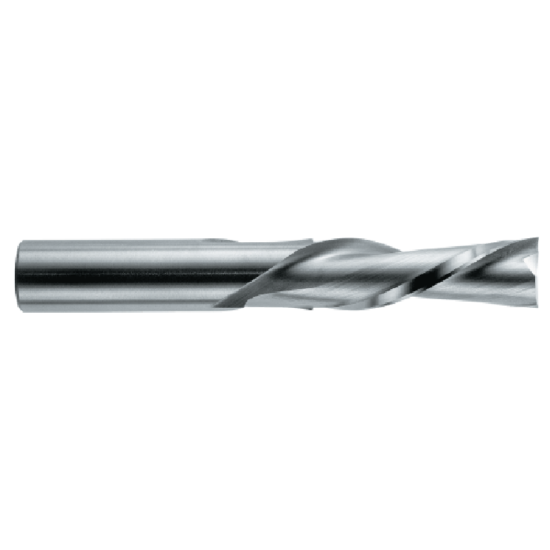

ROBBJACK WD1-203-04 DIA 1/8 SH 0.1250 LOC 0.4700 OAL 1.4950 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBWD1-203-04
Delivery date: 3-5 days
$18.15

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State California
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Performance Rating High Performance
Made In USA Yes
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Length Type Standard
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cut Rating Aluminum, Graphite, Plastic
End Of Tool Shape Square
Dimension Description 0.125 x 0.125 x 0.470 x 1.495
Cutter Dia 0.1250 3.18MM - 1/8
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 1.4950 37.97MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Length Of Cut 0.4700 11.94MM
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
