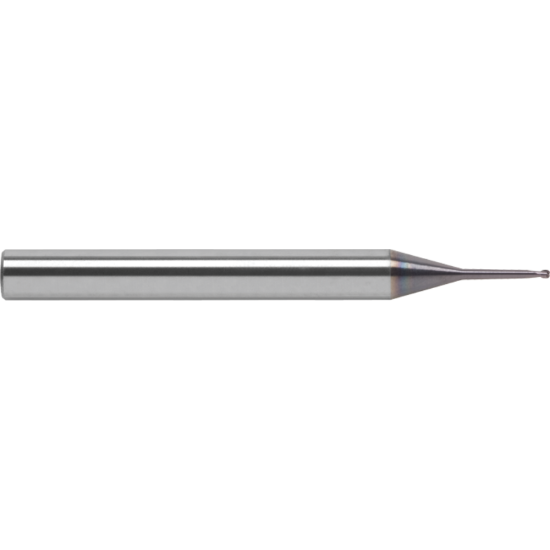

ROBBJACK TM-203-03 DIA 3/32 SH 0.2500 LOC 0.0937 OAL 0.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0200 0.51MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBTM-203-03
Delivery date: 3-5 days
$57.35

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Copy Milling, Face Milling, Profile Milling, Slot Milling, Feed Milling
Performance Rating High Performance
Shipping State California
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.0938 2.38MM - 3/32
Overall Len 0.5000 12.70MM
Flutes/Inserts 2
Cut Rating <65HRC Steel, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Length Of Cut 0.0938 2.38MM
Length Type Standard
End Of Tool Shape Corner Radius
Single/Double End Single End
Corner Radius 0.0200 0.51MM
Neck Length 0.5000 12.70MM
Helix Angle 30°
Dimension Description 0.094 x 0.250 x 0.094 x 0.500
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
