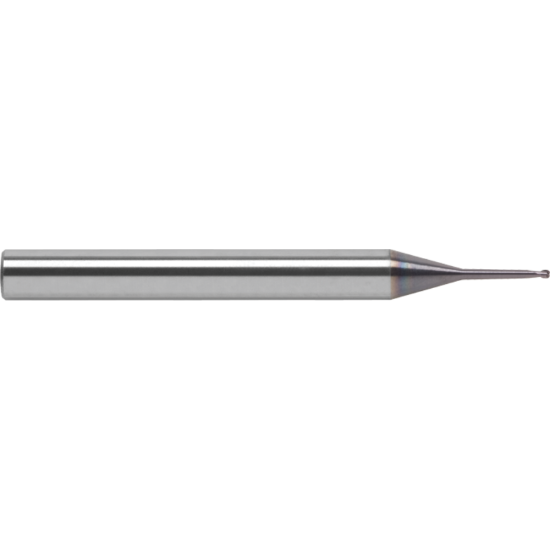

ROBBJACK TM-203-02 DIA 1/16 SH 0.2500 LOC 0.0625 OAL 0.3750 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0120 0.30MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBTM-203-02
Delivery date: 3-5 days
$57.35

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Feed Milling, Slot Milling, Face Milling, Profile Milling
Made In USA Yes
Shipping State California
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Cut Rating <65HRC Steel, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Neck Length 0.3750 9.53MM
Length Of Cut 0.0625 1.59MM
Helix Angle 30°
Overall Len 0.3750 9.53MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Dimension Description 0.063 x 0.250 x 0.063 x 0.375
Corner Radius 0.0120 0.30MM
Length Type Standard
Cutter Dia 0.0625 1.59MM - 1/16
Flutes/Inserts 2
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
