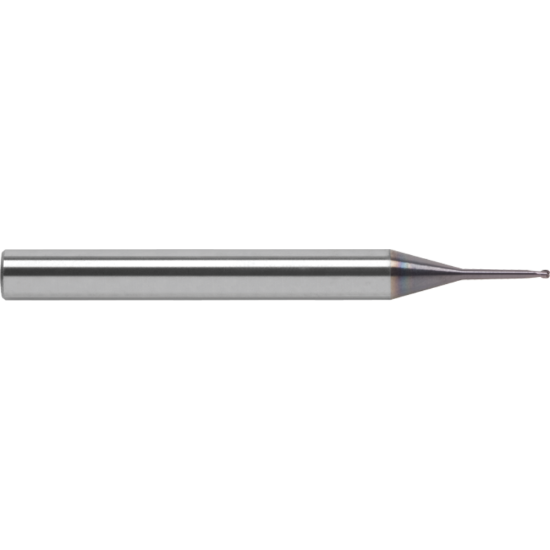

ROBBJACK TM-202-03 DIA 3/32 SH 0.2500 LOC 0.0937 OAL 0.2500 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0200 0.51MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBTM-202-03
Delivery date: 3-5 days
$54.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Face Milling, Profile Milling, Slot Milling, Copy Milling, Feed Milling
Performance Rating High Performance
Package Size 1
Shipping State California
Dimensional Specifications
Corner Radius 0.0200 0.51MM
Helix Angle 30°
End Of Tool Shape Corner Radius
Single/Double End Single End
Dimension Description 0.094 x 0.250 x 0.094 x 0.250
Cutter Style Carbide Bull Nose Finisher
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 2
Neck Length 0.2500 6.35MM
Cutter Dia 0.0938 2.38MM - 3/32
Length Of Cut 0.0938 2.38MM
Length Type Standard
Cut Rating <65HRC Steel, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Overall Len 0.2500 6.35MM
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
