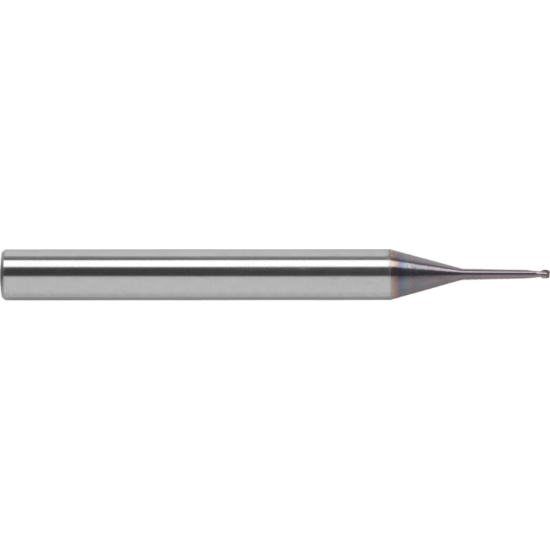

ROBBJACK TM-202-01 DIA 1/32 SH 0.2500 LOC 0.0312 OAL 0.1250 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0080 0.20MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBTM-202-01
Delivery date: 3-5 days
$54.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Profile Milling, Slot Milling, Copy Milling, Feed Milling
Package Size 1
Performance Rating High Performance
Made In USA Yes
Shipping State California
Dimensional Specifications
Corner Radius 0.0080 0.20MM
Single/Double End Single End
Machine Side Connection Size 0.2500 6.35MM
Neck Length 0.1250 3.18MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
End Of Tool Shape Corner Radius
Cut Rating <65HRC Steel, Stainless Steel
Cutter Dia 0.0312 0.79MM - 1/32
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Overall Len 0.1250 3.18MM
Length Of Cut 0.0312 0.79MM
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.031 x 0.250 x 0.031 x 0.125
Helix Angle 30°
Flutes/Inserts 2
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
