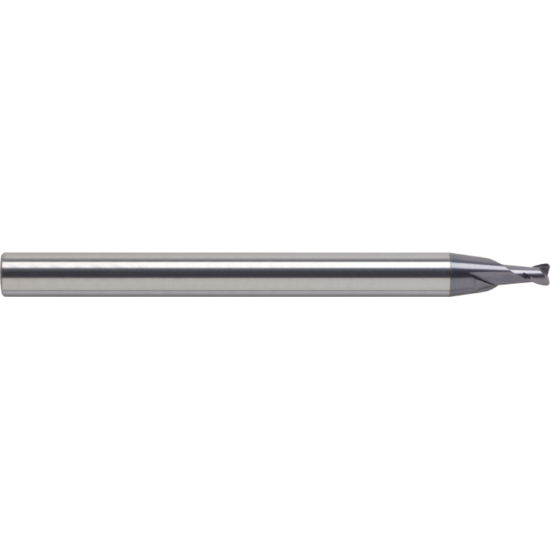

ROBBJACK TM-201-12 DIA 3/8 SH 0.3750 LOC 0.3750 OAL 3.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0800 2.03MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBTM-201-12
Delivery date: 3-5 days
$81.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Face Milling, Profile Milling, Copy Milling, Feed Milling
Performance Rating High Performance
Made In USA Yes
Package Size 1
Shipping State California
Dimensional Specifications
Dimension Description 0.375 x 0.375 x 0.375 x 3.500
Flutes/Inserts 2
Length Type Standard
Cutter Dia 0.3750 9.53MM - 3/8
Corner Radius 0.0800 2.03MM
End Of Tool Shape Corner Radius
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 3.5000 88.90MM
Cutter Style Carbide Bull Nose Finisher
Helix Angle 30°
Single/Double End Single End
Cut Rating <65HRC Steel, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.3750 9.53MM
Inch/Metric Inch
Machine Side Connection Size 0.3750 9.53MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
