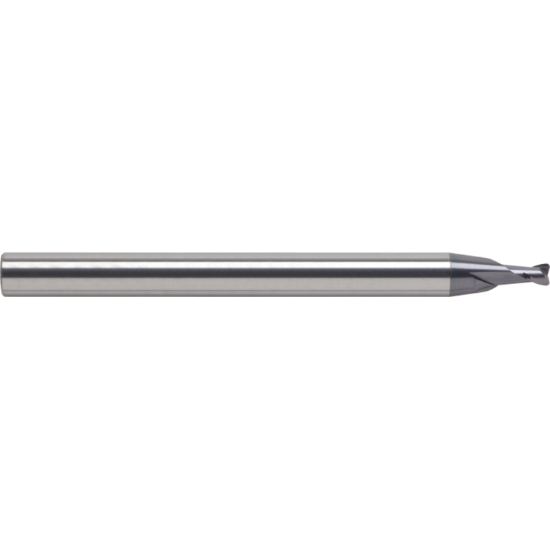

ROBBJACK TM-201-01 DIA 1/32 SH 0.2500 LOC 0.0312 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0080 0.20MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBTM-201-01
Delivery date: 3-5 days
$55.15

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Slot Milling, Copy Milling, Feed Milling, Face Milling, Profile Milling
Shipping State California
Made In USA Yes
Performance Rating High Performance
Dimensional Specifications
Corner Radius 0.0080 0.20MM
Flutes/Inserts 2
Length Of Cut 0.0312 0.79MM
Dimension Description 0.031 x 0.250 x 0.031 x 2.500
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Length Type Standard
Cutter Style Carbide Bull Nose Finisher
Helix Angle 30°
Cut Rating <65HRC Steel, Stainless Steel
Cutter Dia 0.0312 0.79MM - 1/32
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Overall Len 2.5000 63.50MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
