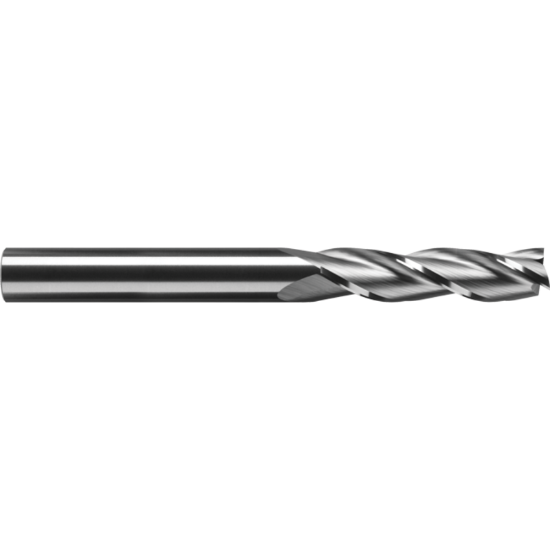

ROBBJACK TL-303-14 DIA 7/16 SH 0.4375 LOC 1.7500 OAL 3.7500 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBTL-303-14
Delivery date: 3-5 days
$137.05

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State California
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Performance Rating High Performance
Made In USA Yes
Package Size 1
Dimensional Specifications
Length Type Standard
Flutes/Inserts 3
End Of Tool Shape Square
Single/Double End Single End
Length Of Cut 1.7500 44.45MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.4375 11.11MM
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Cutter Style Carbide Finisher
Inch/Metric Inch
Cutter Dia 0.4375 11.11MM - 7/16
Dimension Description 0.438 x 0.438 x 1.750 x 3.750
Overall Len 3.7500 95.25MM
Helix Angle 30°
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
