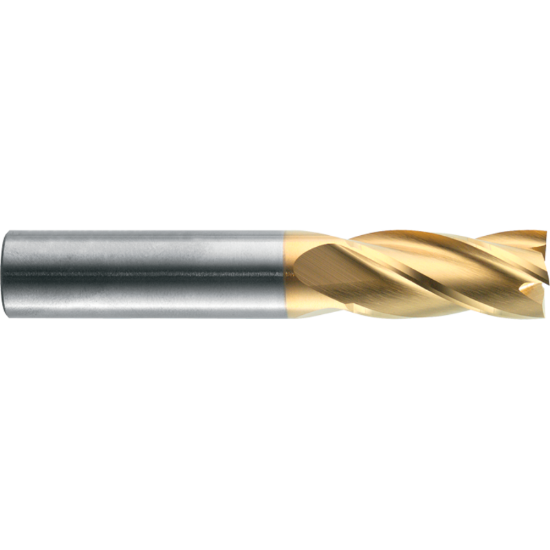

ROBBJACK ST-430-16 DIA 1/2 SH 0.50 LOC 1.00 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBST-430-16
Delivery date: 3-5 days
$108.95

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State California
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Package Size 1
Made In USA Yes
Performance Rating High Performance
Dimensional Specifications
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 4
Length Type Standard
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Dimension Description 0.500 x 0.500 x 1.000 x 3.000
Overall Len 3.0000 76.20MM
Helix Angle 30°
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
End Of Tool Shape Square
Cutter Style Carbide Finisher
Inch/Metric Inch
Machine Side Connection Type Cylindrical
Length Of Cut 1.0000 25.40MM
Cutter Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
