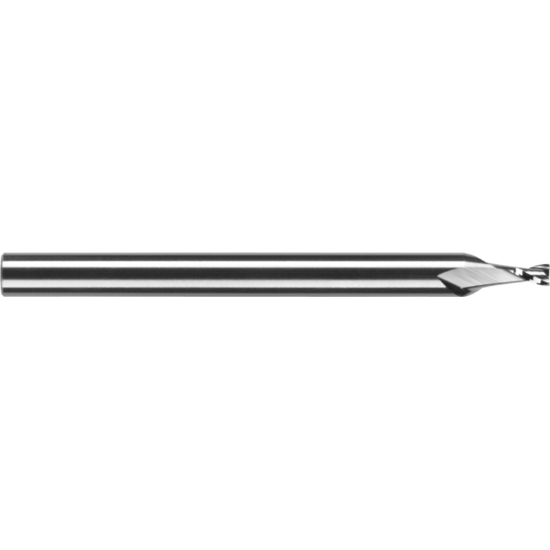

ROBBJACK SS-2-038 DIA 0.038 SH 0.1250 LOC 0.0570 OAL 1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBSS-2-038
Delivery date: 3-5 days
$18.90

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Made In USA Yes
Performance Rating High Performance
Shipping State California
Dimensional Specifications
Cutter Dia 0.0380 0.97MM - #62
Flutes/Inserts 2
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Single/Double End Single End
Dimension Description 0.038 x 0.125 x 0.057 x 1.500
Helix Angle 30°
Overall Len 1.5000 38.10MM
Length Of Cut 0.0570 1.45MM
End Of Tool Shape Square
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
