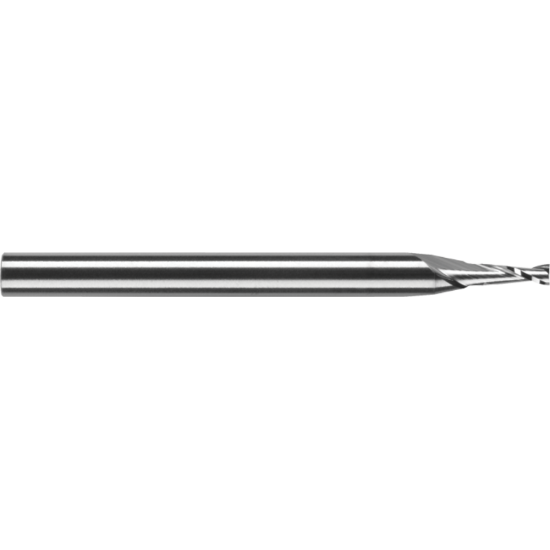

ROBBJACK SR-2-056 DIA 1.42MM SH 0.1250 LOC 0.1680 OAL 1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBSR-2-056
Delivery date: 3-5 days
$19.45

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Shipping State California
Made In USA Yes
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Length Of Cut 0.1680 4.27MM
Single/Double End Single End
Machine Side Connection Size 0.1250 3.18MM
Length Type Standard
Machine Side Connection Type Cylindrical
Flutes/Inserts 2
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
End Of Tool Shape Square
Cutter Style Carbide Finisher
Inch/Metric Inch
Dimension Description 0.056 x 0.125 x 0.168 x 1.500
Cutter Dia 0.0560 1.42MM
Overall Len 1.5000 38.10MM
Helix Angle 30°
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
