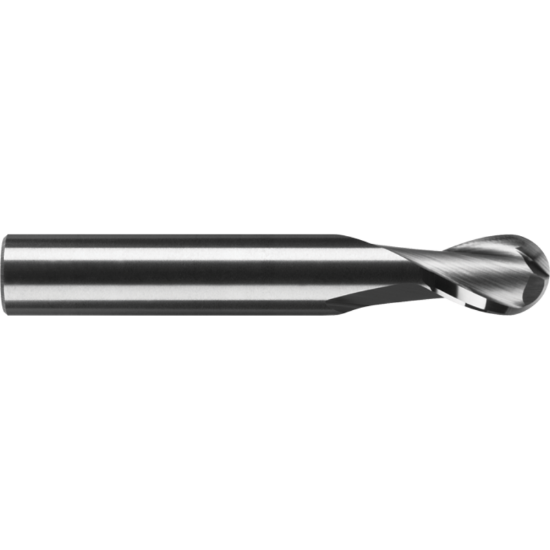

ROBBJACK SB-201-14 DIA 7/16 SH 0.4375 LOC 0.6250 OAL 2.7500 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBSB-201-14
Delivery date: 3-5 days
$76.85

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Slot Milling, Profile Milling, Copy Milling, Side Milling, Ball Milling
Shipping State California
Made In USA Yes
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Dimension Description 0.438 x 0.438 x 0.625 x 2.750
Cutter Dia 0.4375 11.11MM - 7/16
Cutter Style Carbide Ball Finisher
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Flutes/Inserts 2
Length Of Cut 0.6250 15.88MM
Length Type Standard
Helix Angle 30°
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Size 0.4375 11.11MM
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Overall Len 2.7500 69.85MM
End Of Tool Shape Ball Nose
Single/Double End Single End
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
