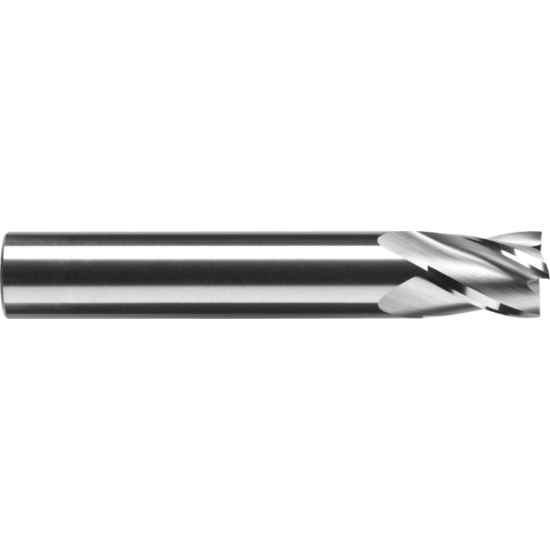

ROBBJACK S1-401-14 DIA 7/16 SH 0.4375 LOC 0.6250 OAL 2.7500 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBS1-401-14
Delivery date: 3-5 days
$56.95

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Performance Rating High Performance
Made In USA Yes
Package Size 1
Shipping State California
Dimensional Specifications
Flutes/Inserts 4
Length Of Cut 0.6250 15.88MM
Length Type Standard
Overall Len 2.7500 69.85MM
Dimension Description 0.438 x 0.438 x 0.625 x 2.750
Cutter Dia 0.4375 11.11MM - 7/16
Shank/Pilot Dia 0.4375 11.11MM - 7/16
End Of Tool Shape Square
Helix Angle 30°
Cut Rating Aluminum, Brass, Plastic
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.4375 11.11MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
