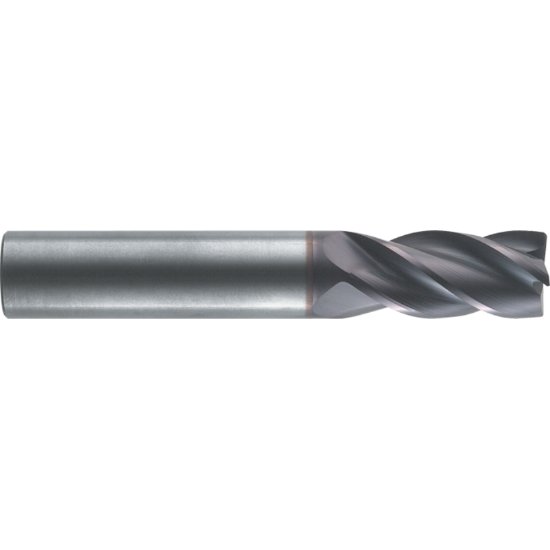

Picture of RobbJack NS-401-06-FL Dia 3/16 SH 0.1875 LOC 0.3750 OAL2.50 End Mill Standard Flute Variable Helix Carbide Uncoated Single End SquareChamfer

RobbJack NS-401-06-FL Dia 3/16 SH 0.1875 LOC 0.3750 OAL2.50 End Mill Standard Flute Variable Helix Carbide Uncoated Single End SquareChamfer

Part Number: ROBNS-401-06-FL 0.188 x 0.188 x 0.375 x 2.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: 1267471
Vendor: Sussex Tool and Supply
$43.37
ROBBJACK Variable Helix End Mill Carbide Uncoated Square Chamfer Standard Flute Flutes 4 Single End ROBBJACK Carbide
Products specifications
Attribute name Attribute value
Shipping State California
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Gray Iron, Stainless Steel, <40HRC Steel, Ductile Iron
Mach Side Connection Size 0.1875 4.76MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Tool Dia 0.1875 4.76MM - 3/16
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.3750 9.53MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle Variable
Center Cutting Center Cutting
