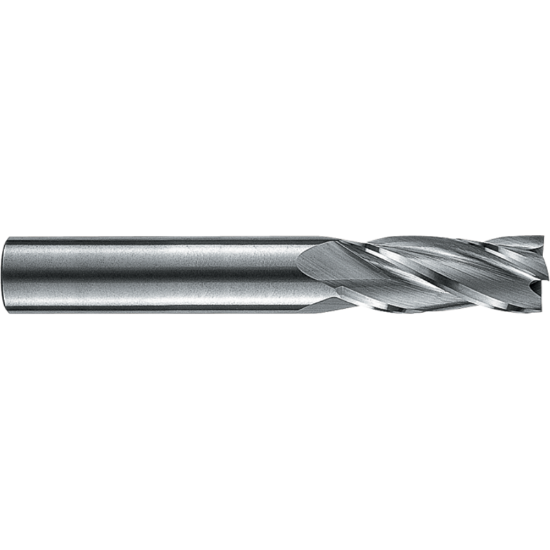

ROBBJACK NR-404-06.5 DIA 13/64 SH 0.2500 LOC 0.6250 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBNR-404-06.5
Delivery date: 3-5 days
$37.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State California
Made In USA Yes
Package Size 1
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Performance Rating High Performance
Dimensional Specifications
Dimension Description 0.203 x 0.250 x 0.625 x 2.500
Length Type Standard
Machine Side Connection Type Cylindrical
Helix Angle 30°
Cutter Dia 0.2031 5.16MM - 13/64
Flutes/Inserts 4
Length Of Cut 0.6250 15.88MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Overall Len 2.5000 63.50MM
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Size 0.2500 6.35MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
